2.0mm Future Bus Female Connector 5 Row Right Angle Gold Plated Press Fit

Name: 20mm Future Bus Female Connector 5 Row Right Angle Gold Plated Press Fit
Brand: JiLN
Price: 1 USD

China 2.0mm Future Bus Female Connector 5 Row Right Angle Gold Plated Press Fit wholesale

Brand Name : JiLN

Model Number : 35105120AFRXXBWX1

Certification : UL/Rosh/SGS

Place of Origin : CHINA

MOQ : 500-1000pcs

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 800000Kpcs

Delivery Time : 5-8 work days

Packaging Details : Tray packing

Material : LCP/PS9T

Position : 30P to 120P

Samples : 10-20pcs for free

Picth : 2.00mm

Color : Black/White

Package : Tray packing

Contact Now

Products Description

2.0mm Future Bus Female Connector 5 Row Right Angle Receptacle Selective Gold Plated PRESS-FIT TYPE

This product family is a series of Board-to-Board connectors from Jinling Electroincs with a mission to meet all the needs of the industrial market with maximum functionality.

Description
Future Bus product family offers the widest range of backplane connector solutions which includes right angle and vertical for both header and receptacle series. The connectors are designed in accordance with IEC 61076-4-104 and Telcordia GR-1217- CORE.

Future Bus headers and receptacles offer high contact density of 250 contacts per 100mm connector length and a contact pitch of 2mm. They are available in 4 and 5 row versions.

Future Bus vertical receptacles can be used with vertical headers for mezzanine application.

Future Bus backplane connectors meet Future bus+ standards to support applications in data, industrial and instrumentation, medical and telecom markets.

MATERIAL
UL No#
Contact Material	Phosphor Bronze/brass
Insulator Material	LCP
Contact plating	Au or Sn over 50U"NI
Withstanding Voltage	200V
Current Rating	1.5A
Insulation Resistance	1000MΩ Min
T&R packing :	Tray packing
soldering type	DIP/Right Angle
Operation Temperature:	-40 ℃ to +105 ℃

Features:

High Quality Guaranteed

First Class Service

Best Prices

Stable performance

sturdy and durable

Long lifespan

wear resistant

Advantage:

1. High quality.
2. Competitive price.
3. Fast delivery time.
4. Variety models and specifications.
5. Professional manufacturer.

We are looking forward to long term cooperation with customers, we will make best service and after sales service for all of our customers. If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.

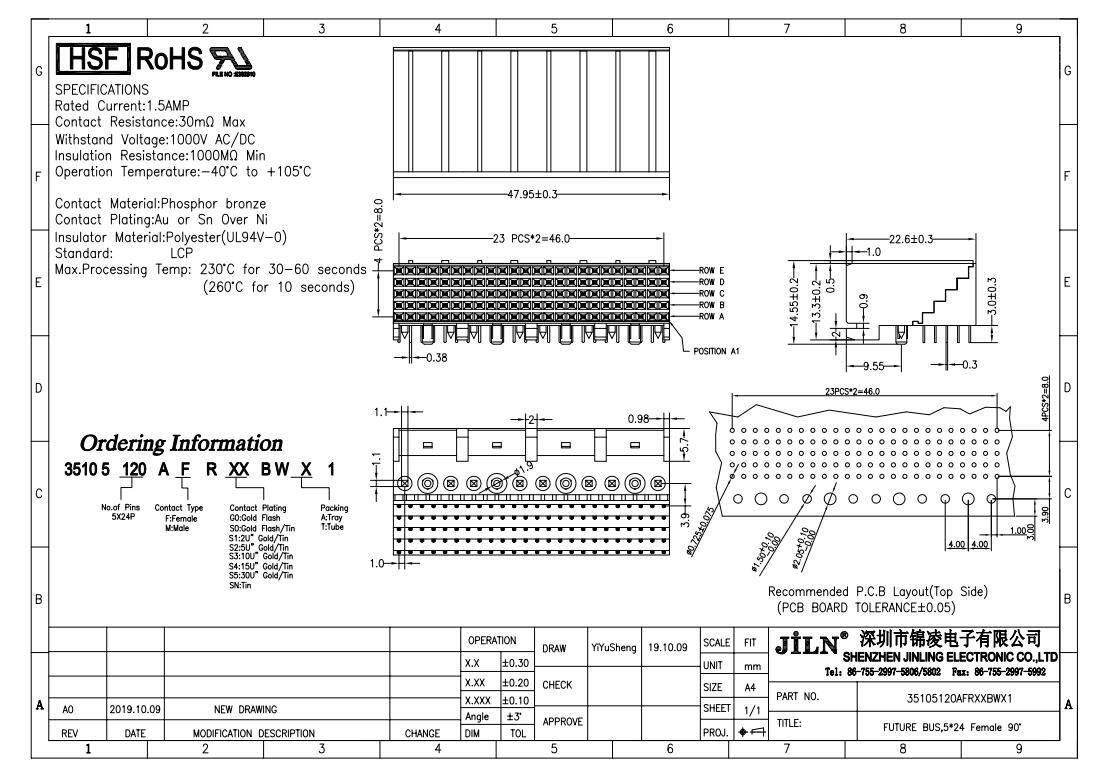

Engineering drawing:

35105120AFRXXBWX1.pdf Engineering drawing(Male header DIP)
